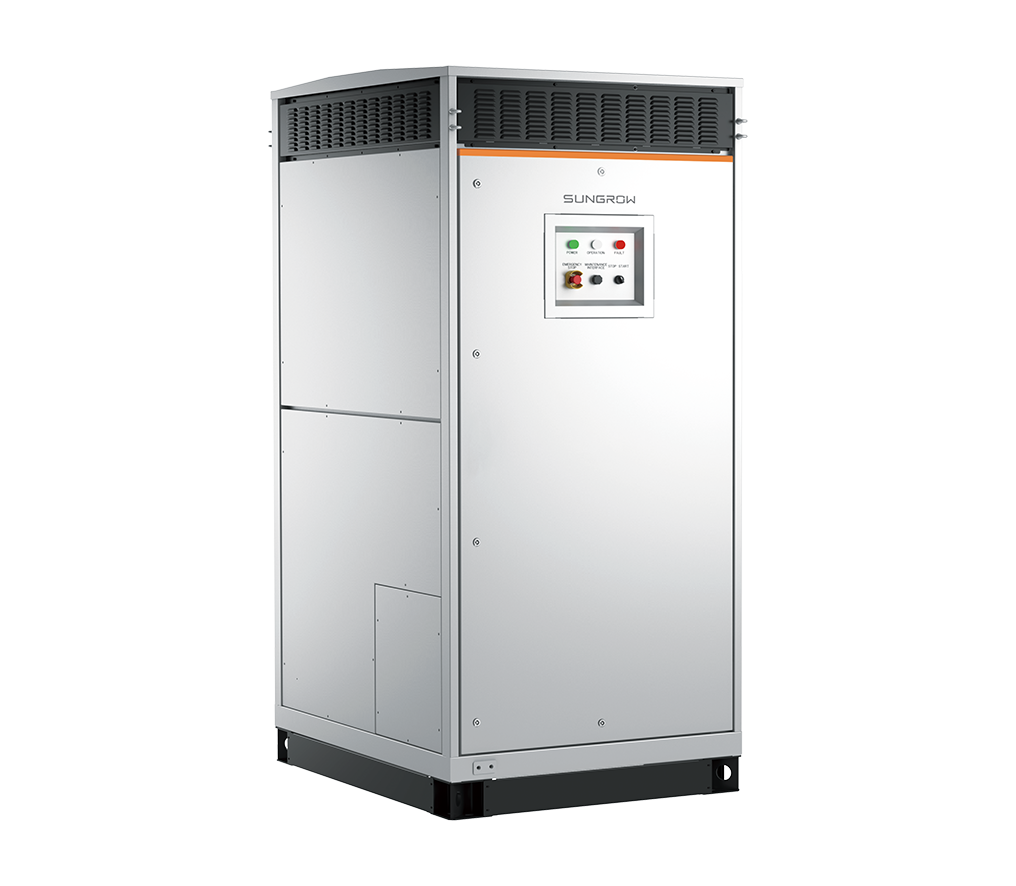

Power Conversion System
SC1725UD/SC2000UD
.png)
IN
.png)
Utility Scale
Overview
Documents & Installation
HIGH YIELD
- •Advanced three-level technology, max. efficiency 99 %
- •Wide DC voltage operation window, full power operation at 1500 V
SMART O&M
- •Modular design,easy for maintenance
- •IP65 protection degree, easy for outdoor installation
- •C5 anti-corrosion degree, adjust to applications close to the sea
FLEXIBLE APPLICATION
- •Bidirectional power conversion system with full four-quadrant operation
- •Compatible with high voltage battery system, low system cost
- •Battery charge & dis-charge management and black start function integrated
GRID SUPPORT
- •Compliant with CE, IEC 62477, IEC 61000 and grid regulations
- •Fast active/reactive power response
- •L/HVRT, L/HFRT, soft start/stop, specifiec power factor control and reactive power support
SC1725UD/SC2000UD
1500 V
Max. DC voltage
99 %
Max. efficiency
-35~60 ℃
Operating ambient temperature range
IP65
Degree of protection
