Name: SH5.0-6.0RL
Brand: Sungrow
SKU: SH5.0-6.0RL

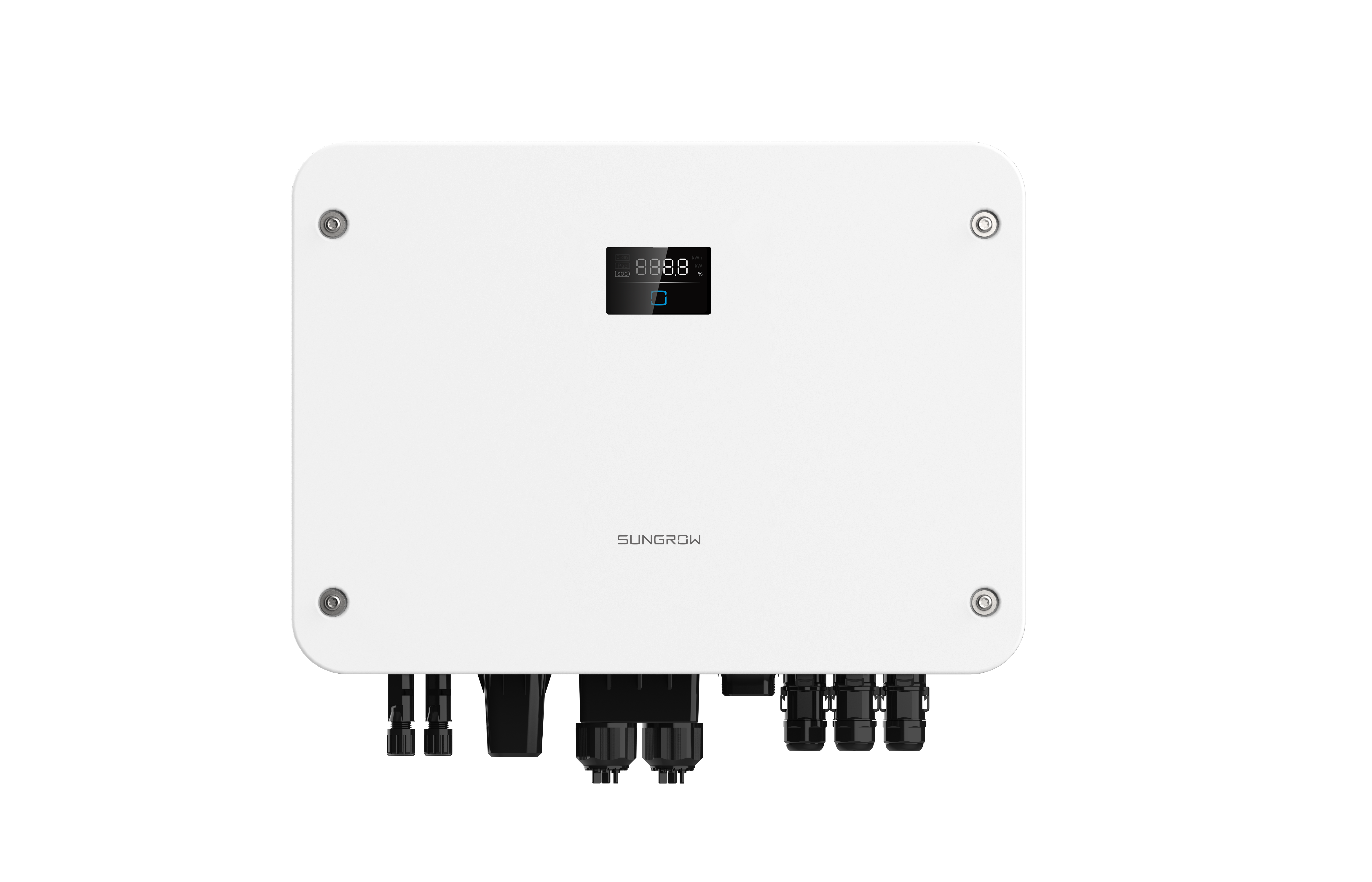

SH5.0-6.0RL

Single-phase Hybrid Inverter

WHAT CAN YOU EXPECT?

Continuous supply even during grid outages

Compatible with next-generation modules

Backup Total

Advanced technology for maximum safety

The SHRL series ensures power supply even during a grid outage. Thanks to its high-speed backup function, the system can automatically transfer critical loads in just 4 milliseconds, providing an experience that is virtually imperceptible to the user. With a pass-through capacity of up to 40 A and a peak output of up to 200% for 10 seconds, it is ready to power demanding appliances and handle consumption peaks without interruption.

Make the Most of the Sun

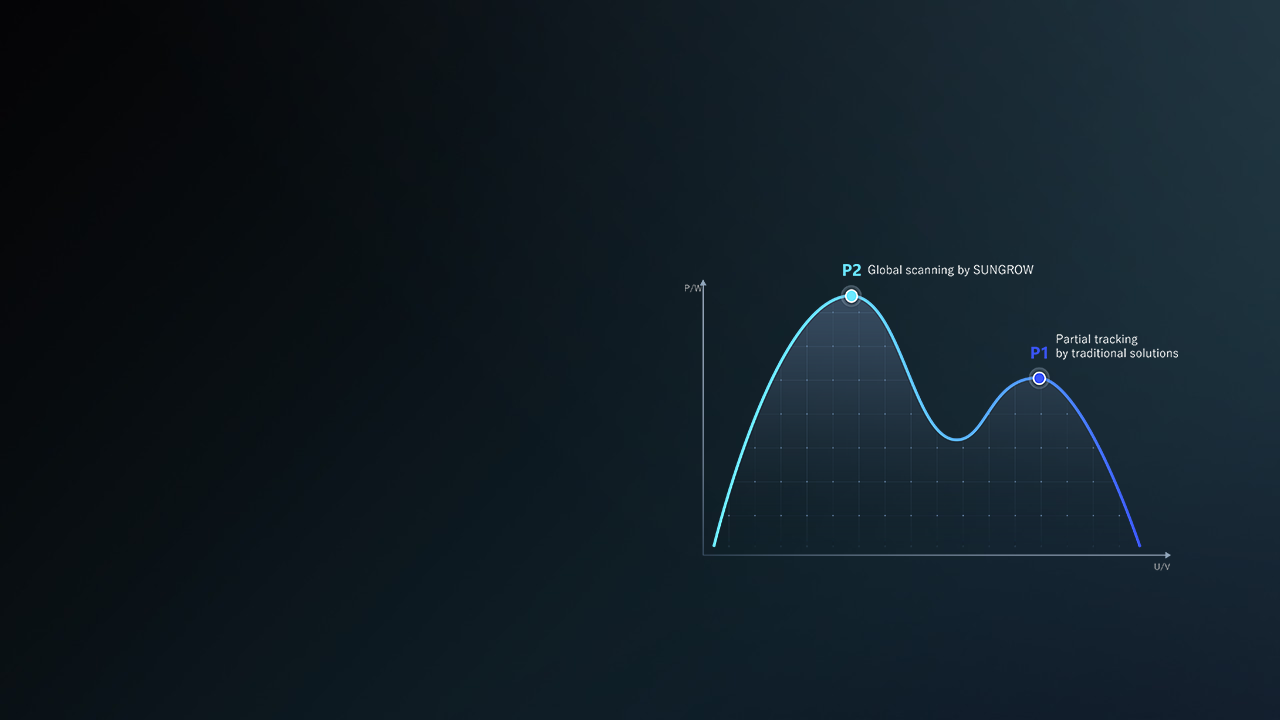

Designed to extract the maximum performance from any photovoltaic installation, the SH5/6RL incorporates Sungrow's Global MPPT technology, capable of continuously identifying the solar array's maximum power point to increase energy production. Its wide operating voltage range and low start-up voltage allow it to generate energy earlier in the morning and for longer at the end of the day, even taking advantage of low-irradiance conditions.

More Performance

Wide voltage range

40-425V

Low Start-up

50V

AC Current

40A

Advanced safety to protect your home

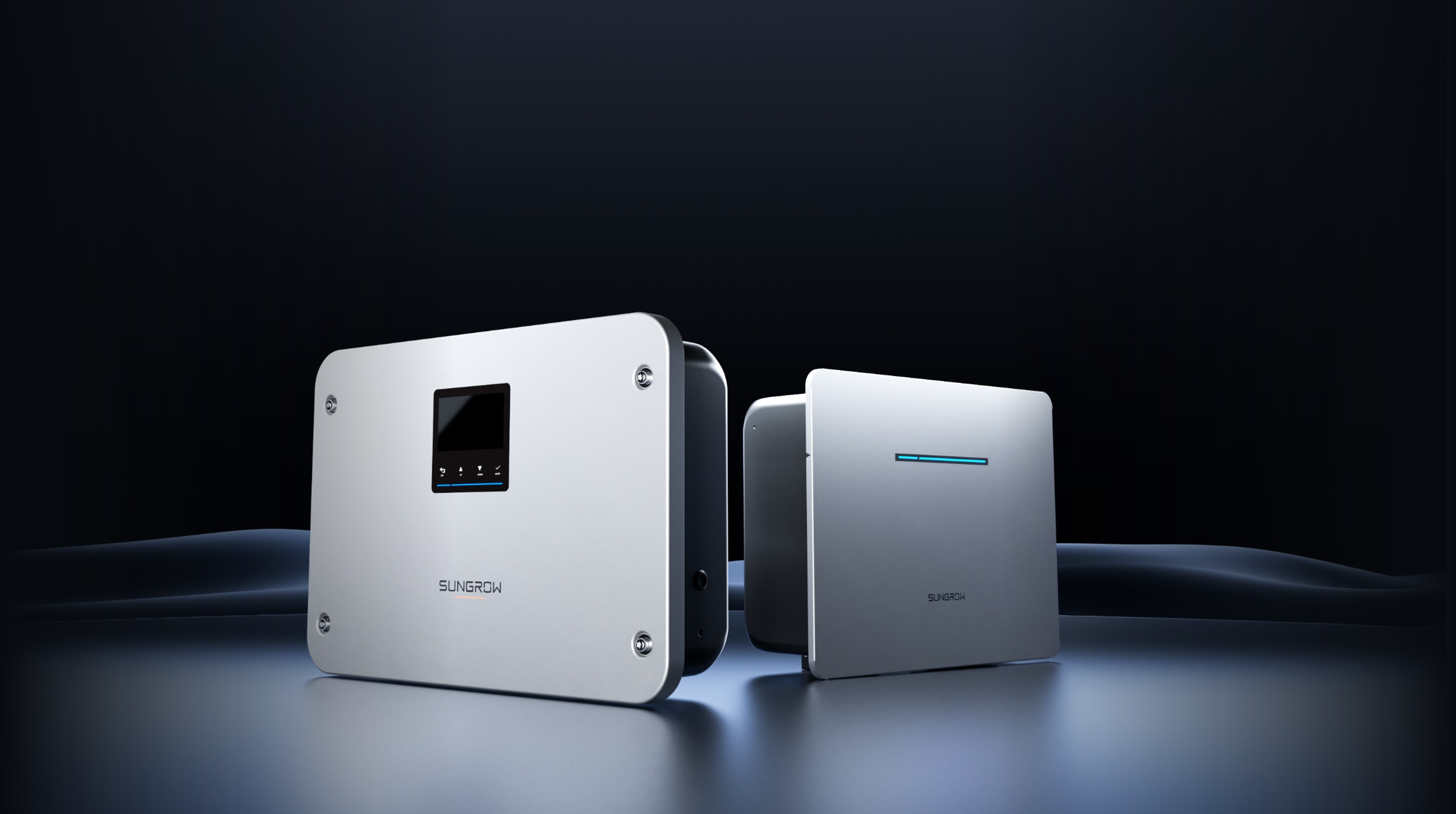

Combining the advantages of a low-voltage battery with Sungrow's most advanced protection technologies, the SHRL + SBL solution offers a safer alternative for residential storage. From arc-fault protection to intelligent thermal monitoring and a multi-layer protected battery design, every component has been developed to maximize system safety and long-term reliability.

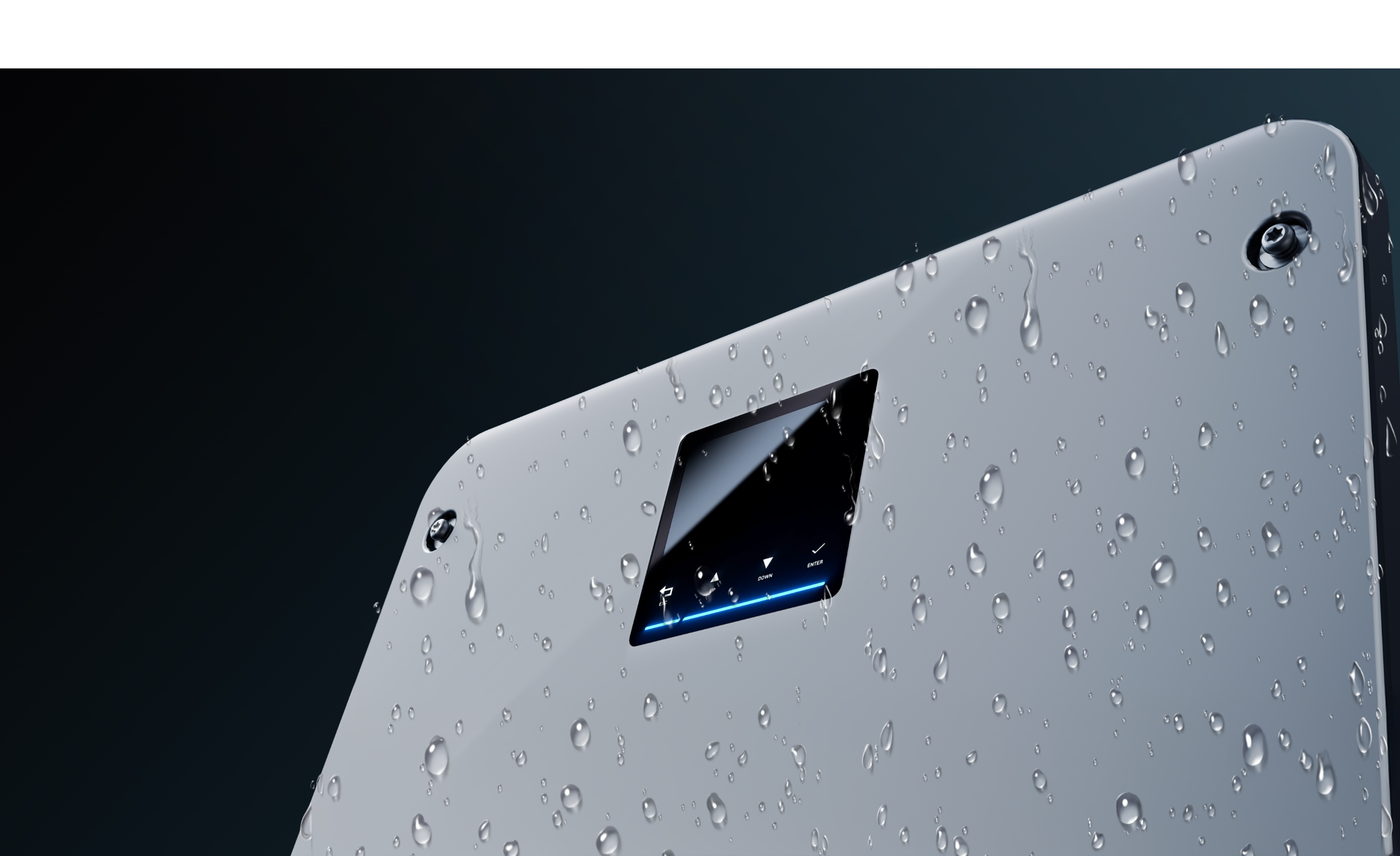

IP65 & C5

Maintains 100% of power output up to 45°C and offers high resistance to water, dust, and corrosion thanks to its aluminum enclosure and IP65 and C5 certifications.

AFCI 3.0

Next-generation AFCI protection with doubled processing power and intelligent algorithms capable of detecting electric arcs more accurately even in complex environments.

PID Zero

Integrates patented PID Zero technology that reduces potential-induced degradation in photovoltaic modules, extending their service life and maintaining long-term system performance.

SPD DC&AC II

The extensive safety protection includes Type II surge protection on DC & AC. It also features a pressure relief system to enhance safety in extreme situations.

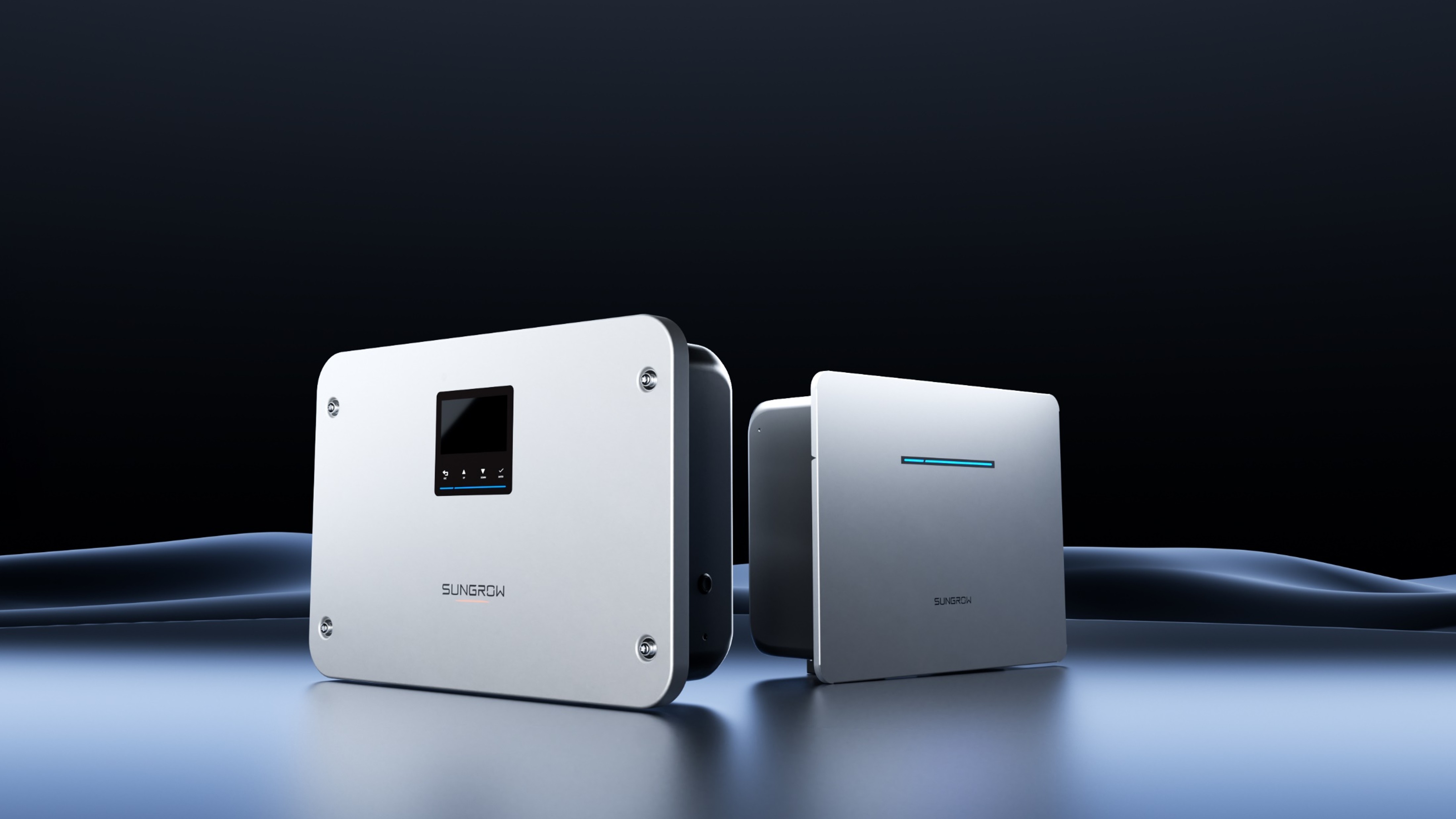

Flexible energy to power your present and prepare for your future.

More flexibility. More capacity. More possibilities. The SHRL series is designed to grow with any installation, from standard residential applications to projects with higher energy demands. Thanks to parallel connection of inverters and batteries, expanding capacity is quick and easy. In addition, its compatibility with backup systems, diesel generators, and AC expansions ensures a solution ready for any energy challenge.
