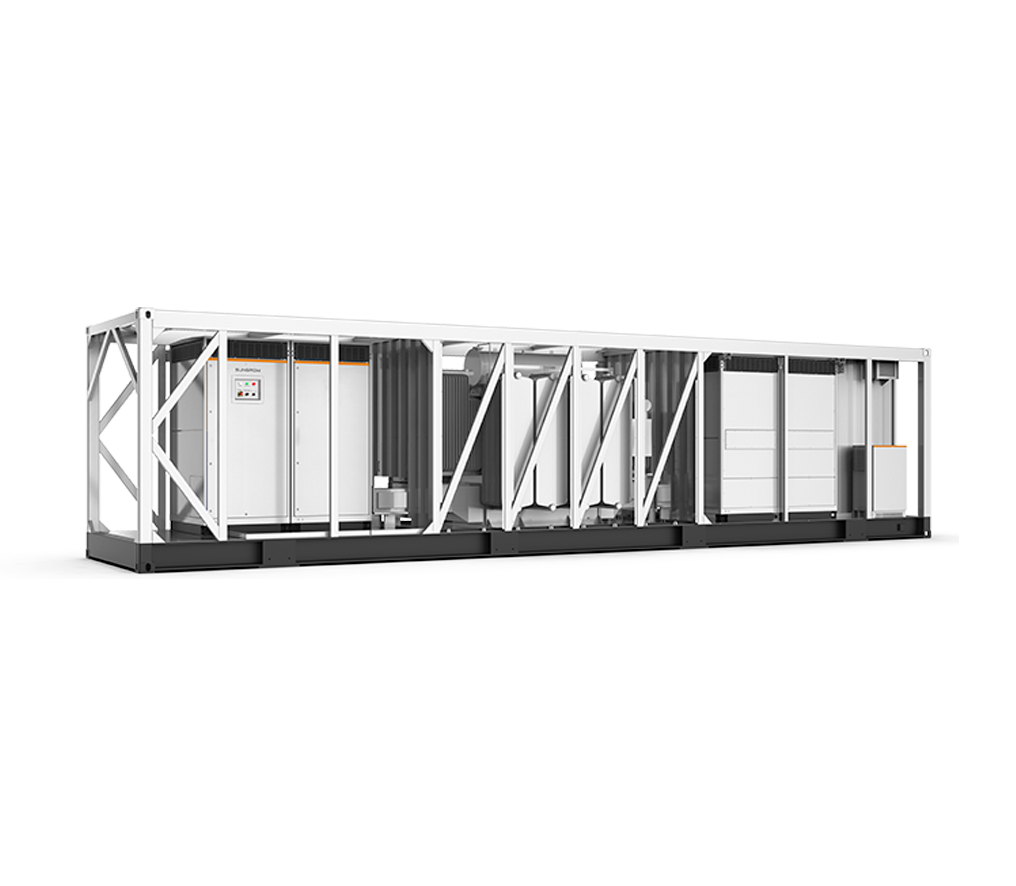

MV Grid-connected PV Inverter for 1500Vdc System
SG4950UD-MV
.png)
AU
.png)
Utility Scale
Overview
Documents & Installation
HIGH YIELD
- •Advanced three-level technology, max.inverter efficiency 99%
- •Effective cooling, full power operation at 45℃
SAVED INVESTMENT
- •Low transportation and installation cost due to 40-foot container design
- •DC 1500V system, low system cost
- •Integrated MV transformer, switchgear, and LV auxiliary power supply
- •Q at night function
SMART O&M
- •Integrated zone monitoring and MV parameters monitoring function for online analysis and trouble shooting
- •Modular design, easy for maintenance
GRID SUPPORT
- •Compliance with standards: IEC 61727, IEC 62116, IEC 62271-202, IEC 62271-200, IEC 60076
- •Low/High voltage ride through (L/HVRT)
- •Active & reactive power control and power ramp rate control
NATIVE SUPPORT FOR DC COUPLING
- •DC coupling, a lower-cost energy storage configuration solution
- •Growth generation revenue through peak-load shifting, steady and smooth output
- •Active grid-forming, enhancing power grid resilience and enabling stable power generation in weak grids
SG4950UD-MV
1500 V
Max. PV Input Voltage
4950 kVA
AC Output Power
938~1500 V
MPP voltage range
99.02%
Inverter Max. Efficiency
