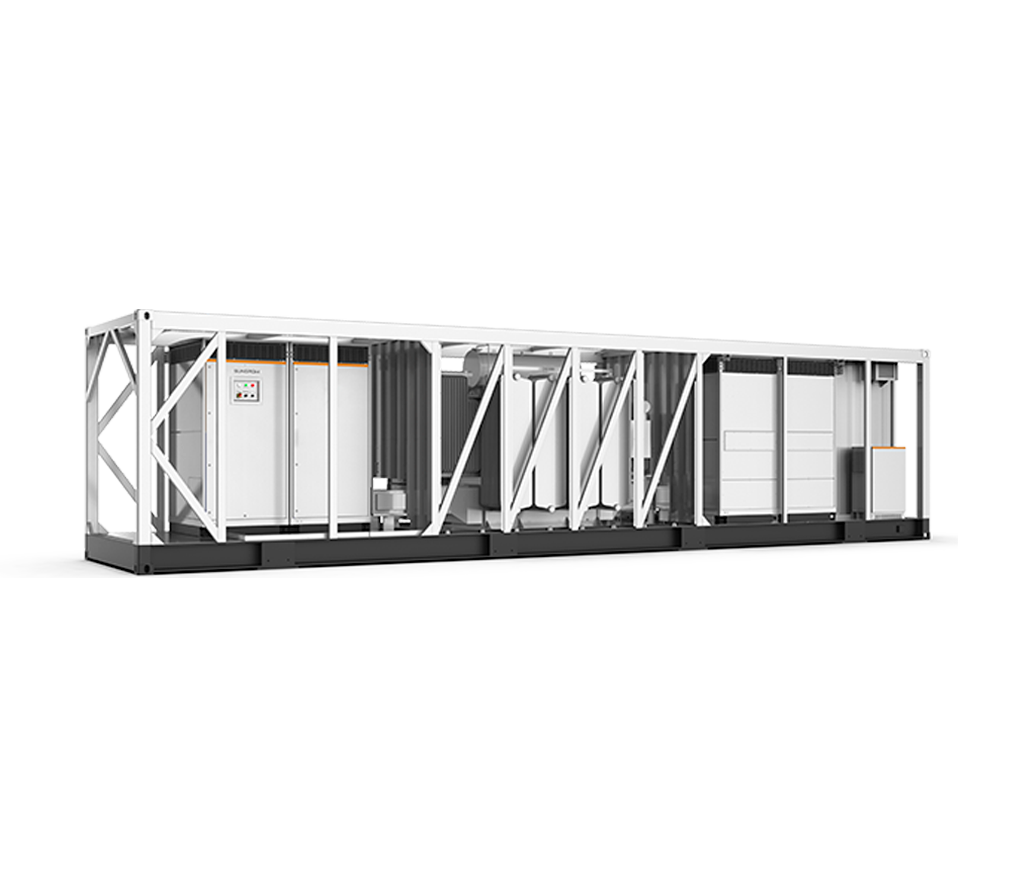

MV Power Conversion Unit
SC6900UD-MV
.png)
AU
.png)
Utility Scale
Overview
Documents & Installation
HIGH YIELD
- •Advanced three-level technology, max.efficiency 99%
- •Effective forced air cooling,no derating up to 45°C
- •Wide DC voltage operation window, full power operation at 1500V
SMART O&M
- •Modular design,easy for maintenance
- •lP65 protection degree, easy for outdoor installation
- •C5 anti-corrosion degree, adjust to applications close to the sea
FLEXIBLE APPLICATION
- •Bidirectional power conversion system with full four quadrant operation
- •Compatible with high voltage battery system,low system cost
- •Battery charge & dis-charge management and black start function integrated
GRID SUPPORT
- •Compliant with CE, IEC 62477, IEC 61000 and grid regulations
- •Fast active/reactive power response
- •L/HVRT, FRT, soft start/stop, specified power factor control and reactive power support
SC4980UD-MV
99%
Converter max.efficiency
6900 kVA
AC output power
-35~60 ℃
Operation Temperature Range
1500 V
DC Voltage
