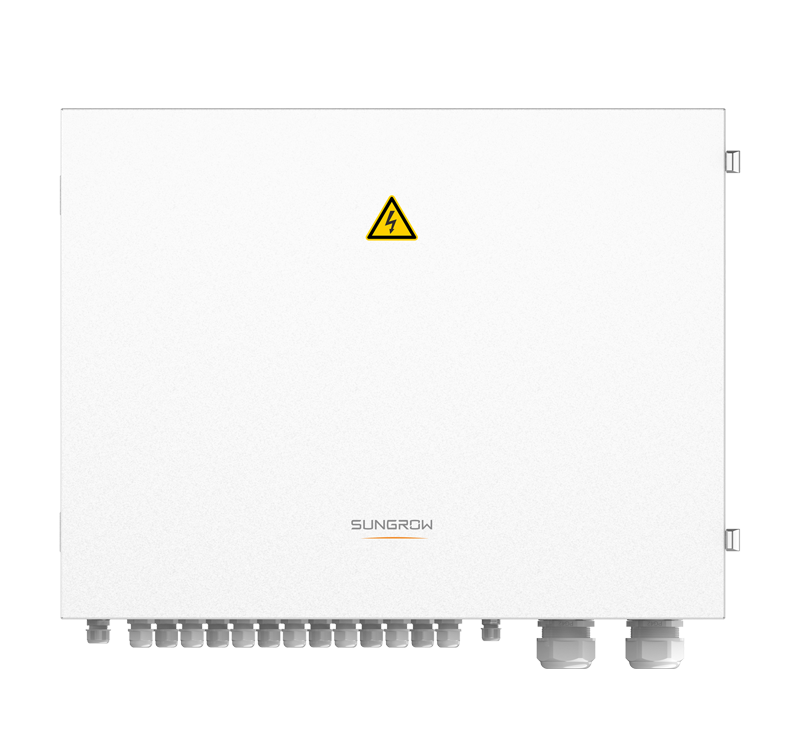

PV combiner box for 1500Vdc system

PVS-16/18/20/24MH-CN
PDP B类 PVS_16/18/20/24MH_CN_MEA
Global
PDP B类 PVS_16/18/20/24MH_CN_MEA
Utility Scale
Overview
Documents & Installation

FLEXIBLE

  • The input current of the branch is increased to 21A, compatible with double-sided components
  • Optional 16/18/20/24 input, flexible design

MAINTENANCE

  • Intelligent fault diagnosis of components saves operation and maintenance costs
  • One-click trip, implement the command to disconnect the switch

SAFE AND RELIABLE

  • DC side security protection
  • IP65 protection and C5 anti-corrosion, meet the outdoor installation and use
  • PV cable special connector to prevent polarity reverse connection
  • Optional MPLC communication, stable and reliable

Products for Utility

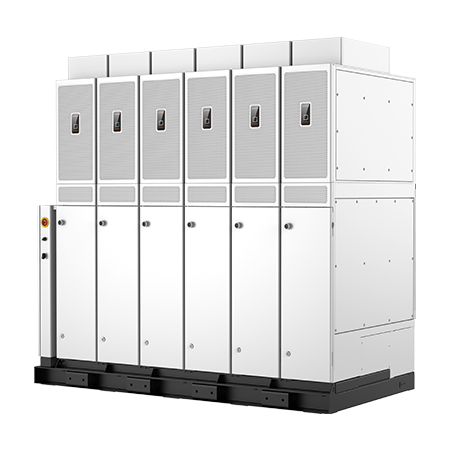

Modular Inverter
