PV Inverter for 1500Vdc System

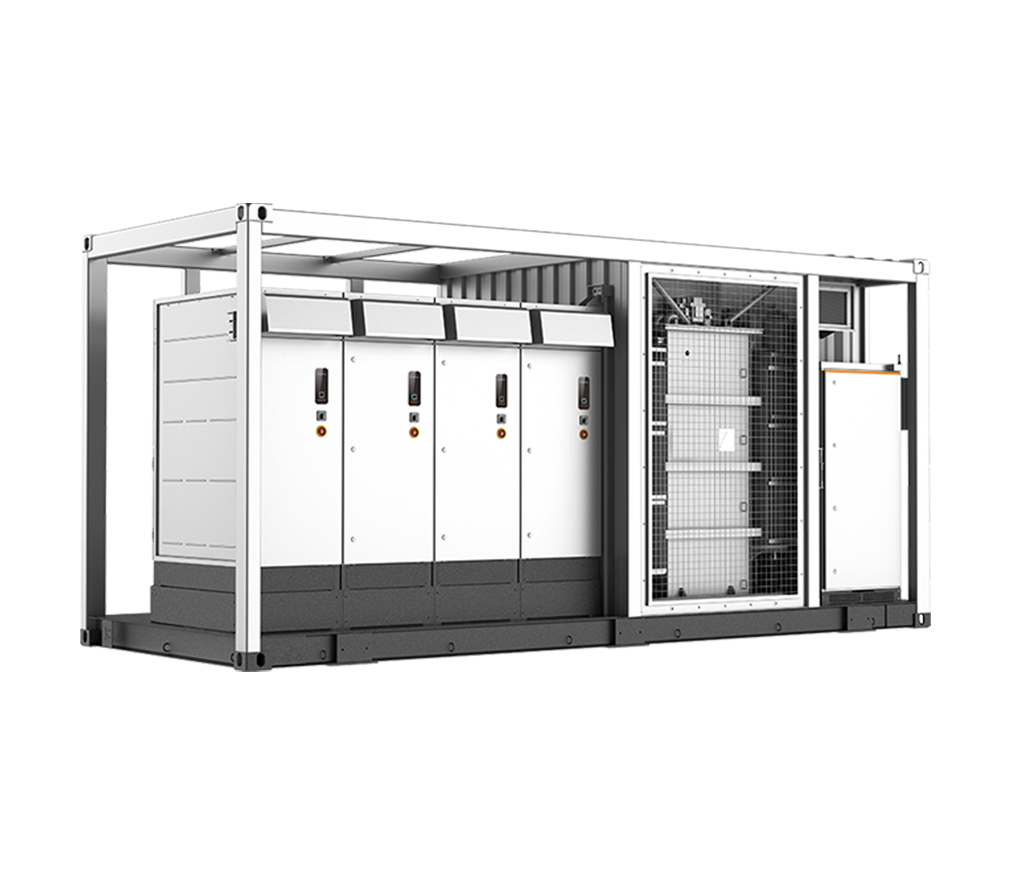

SG4400UD-MV
.png)
Global
.png)
Utility Scale
Overview
Documents & Installation
HIGH YIELD
- •Advanced three-level technology, max. inverter efficiency 99 %
- •Effective cooling, full power operation at 45 ℃
SMART O&M
- •Integrated zone monitoring function for online analysis and trouble shooting
- •Modular design, easy for maintenance
SAVED INVESTMENT
- •Low transportation and installation cost due to 20-foot container design
- •DC 1500 V system, low system cost
- •Integrated MV transformer, switchgear, and LV auxiliary power supply
- •Q at night function optional
GRID SUPPORT
- •Compliance with standards: IEC 61727, IEC 62116, IEC 62271-202, IEC 62271-200, IEC 60076
- •Low / High voltage ride through (L/HVRT)
- •Active & reactive power control and power ramp rate control
Products for Utility
SG4400UD-MV
1500 V
Max. PV Input Voltage
4400 kVA
Rated Output Power
10-35 kV
Rated AC Voltage Range
99%
Inverter Max. Efficiency
