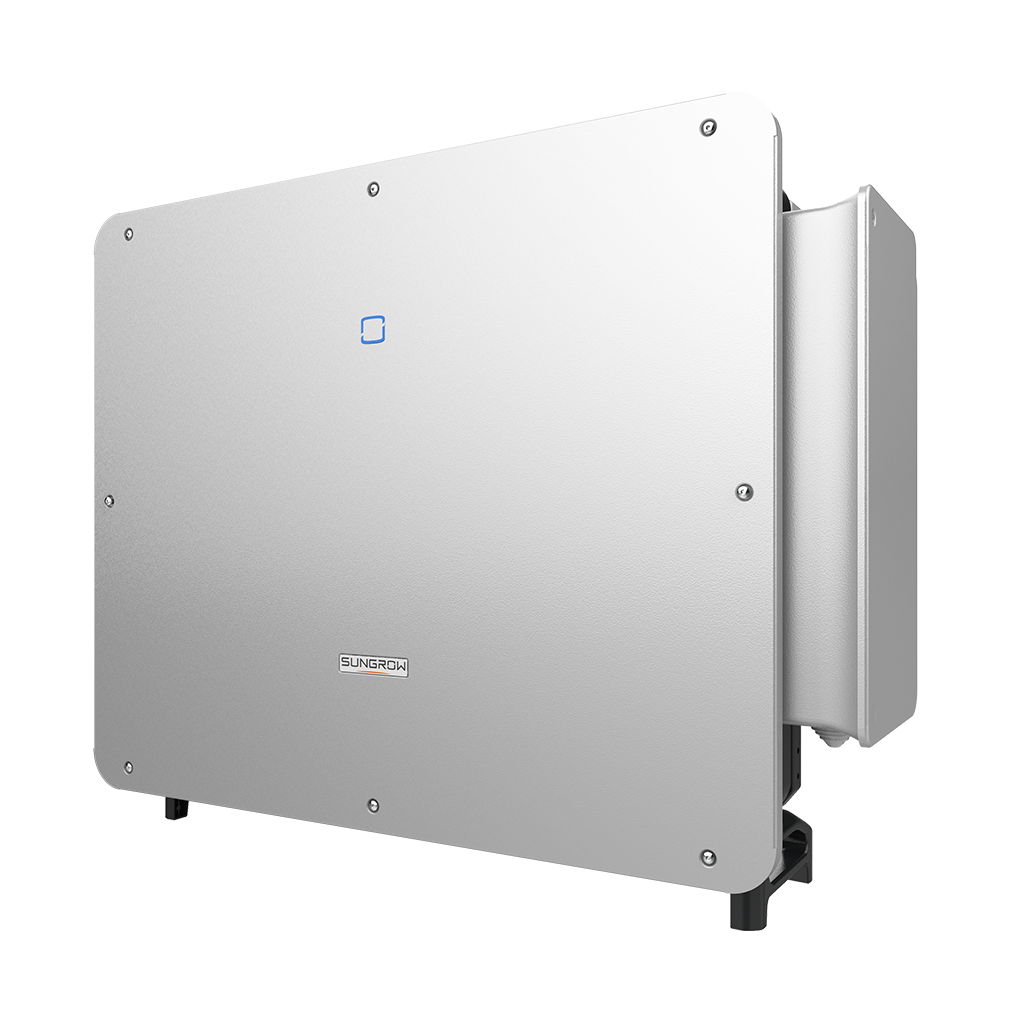

Multi-MPPT String Inverter for 1500 Vdc System
SG333HX
.png)
EU
.png)
Utility Scale
Overview
Documents & Installation
HIGH YIELD
- •Up to 16 MPPTs with max. efficiency 99%
- •20A per string, compatible with 500Wp+ module
- •Data exchange with tracker system, improving yield
LOW COST
- •Q at night function, save investment
- •Power line communication (PLC)
- •Smart IV Curve diagnosis*,active O&M
GRID SUPPORT
- •SCR≥1.15 stable operation in extremely weak grid
- •Reactive power response time <30ms
- •Compliant with global grid code
PROVEN SAFETY
- •2 strings per MPPT, no fear of string reverse connection
- •24h real-time AC and DC insulation monitoring
Products for Utility
SG333HX
1500 V
Max. PV Input Voltage
333 kVA
AC Output Power
800 V
Nominal AC voltage
99.02%
Max. Efficiency
Download
Datasheet
SG333HX Datasheet
Operation & Maintenance Guide
SG285HX_SG320HX_SG333_SG350HX Technical Handover Document
Operation & Maintenance Guide
SG285HX_SG320HX _SG333HX _SG350HX Preventive Maintenance Manual
User Manual
SG285/320/333/350HX User Manual
Quick Installation Guide
SG285/320/333/350HX Quick Installation Guide
Installation Video
SG285/320/333/350HX Installation Video
